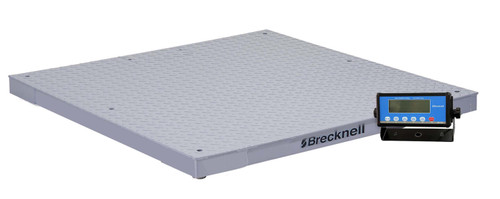

Brecknell DCSB4848-05LED Floor Scale with SBI521 Indicator

This robust DCSB Floor Scale, calibrated with SBI 521 Indicator (NTEP approved), is the ideal weighing solution for a wide variety of industries where palletized goods are constantly being weighed or moved around by pallet jacks or forklifts. The platform deck, available in a wide range of capacities and dimensions, has 1/4″ / 6 mm thick hard-wearing checker plate with powder coat surface finish and waterproof IP67 load cells. Simple to operate, the SBI 521 indicator with LED display offers all the functions and features needed to improve efficiency and increase productivity in most warehouse and manufacturing environments. Typical Applications: Livestock, Shipping/Receiving Areas, Industrial, Warehouse Deck Construction: Fabricated from high quality carbon steel with a 1/4" / 6 mm hard wearing checker plate top deck structure and specially designed folded channel understructure to help maximize strength where needed Finish: Powder coat paint Load Cell: NTEP approved, IP67 potted 350 ohm +/- 3.5Ω Load Cell Rated Output: 3mV/V J-Box: IP65 ABS junction box with floor scale top access for ease of installation and service Interface Cable Length: 15' / 4.5 m with tinned leads (included) Threaded Eye Bolts: Two threaded top access eyebolt holes for easy mobility and pit service Corner Protection: Closed corners to prevent damage to leveling feet Overload Protection: 150% of rated capacity Capacity: 5000 lb x 1 lb / 2500 kg x 0.5 kg Floor Scale Height Adjustment: min 3.1" / 79 mm; max 4.1" / 104 mm Certifications: NTEP CC #02-070 SBI-521 LED Indicator Indicator Construction: IP65 heavy duty stainless steel Indicator housing Display: 0.7" / 17 mm LED display Operator Keys: Hold/Setup, Print/Func, N/G/Total, Unit/Data, Tare/Preset, Zero/On/Off Functions: Motion, Zero, Net, Gross, Tare, Total, lb, kg, %, pcs, oz, Peak/Hold, HI, OK, LO, AC/CHG Unit: kg, lb, lb:oz, PCS, % Display Resolution: Up to 50,000 graduations Serial Port 1: Full-duplex RS-232 Serial Port 2: Full-duplex RS-232 or half-duplex RS-485 Digital Calibration: Front panel calibration and configuration Power: 6 volt 4 AH rechargeable internal lead acid battery with 110/220 AC internal transformer Battery Life: Up to 30 hours in between re-charges Certifications: NTEP at 5,000d, Class III, CC #11-119 DCSB SpecificationsD

SKU:

DCSB4848-05LED

Weight:

320.00 LBS

Power:

6 volt 4 AH rechargeable internal lead acid battery with 110/220 AC internal transformer

Display:

0.7" / 17 mm LED display

Construction:

Carbon steel fabrication with ¼" / 6 mm thick safety tread top plate & heavy duty welded channel under structure,150% overload protection

Brand:

Brecknell

Brand Logo:

https://www.brecknellscales.com/wp-content/uploads/2022/08/brecknell-logo-blue.png

Legal For Trade:

NTEP at 5000d, Class III, Legal-for-Trade

Capacity:

5000 lb x 1 lb / 2500 kg x 0.5 kg
